Autoclave Flip Open Top Loading
Autoclave Vertical Top Loading
Lead Time: 4-6 Weeks

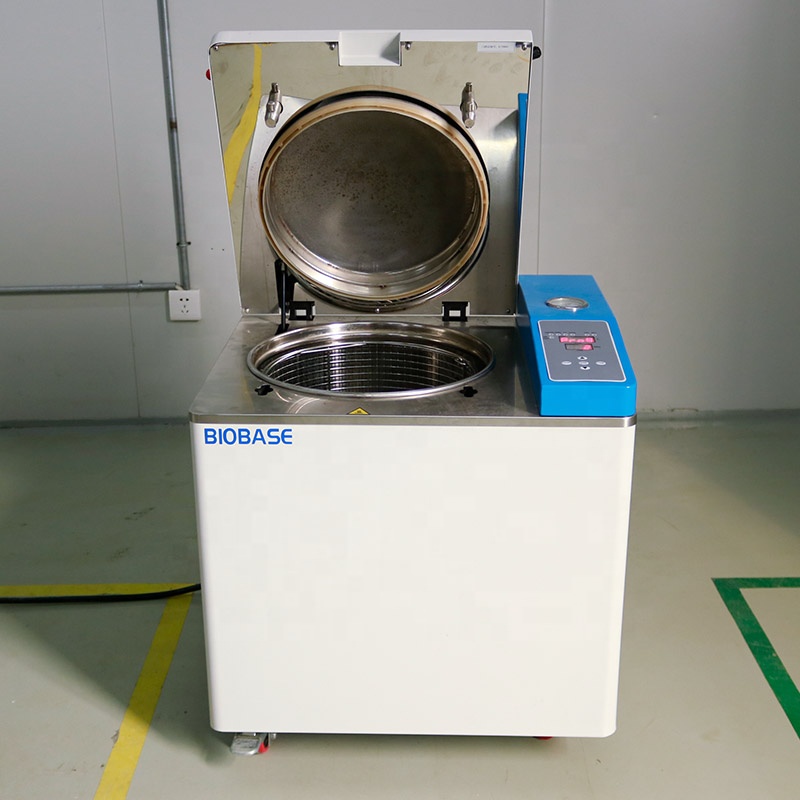

Autoclave Flip Open Top Loading
Vertical Autoclave is mainly used in hospitals, laboratories, universities and other institutes where users need to sterilize temperature-resistance solid and liquid.
- Complete process of filling water, dynamic pulse exhaust, heating, sterilizing, draining and drying run automatically.
- LED screen displays all steps of full process as well as error codes.
- Sterilization programs for dressings, equipment, rubber, culture medium, waste, etc.
- Adopting certain temperature (98~102℃)exhaust method and dynamic pulse exhaust method to completely empty the cold air inside chamber for ensuring steam saturability.
- Automatic selecting quick or low exhaust to avoid sterilization liquid overflowing.
- Inner stainless steel water tank for water and steam to circulate inside.
- Steam does not exhaust during sterilization, so as to keep the outside clean and dry.
- Independent knock-down service window, easy for repairing and maintenance.
- Hand wheel type of quick-open door structure, self-expandable sealing ring, easy operating and safe.

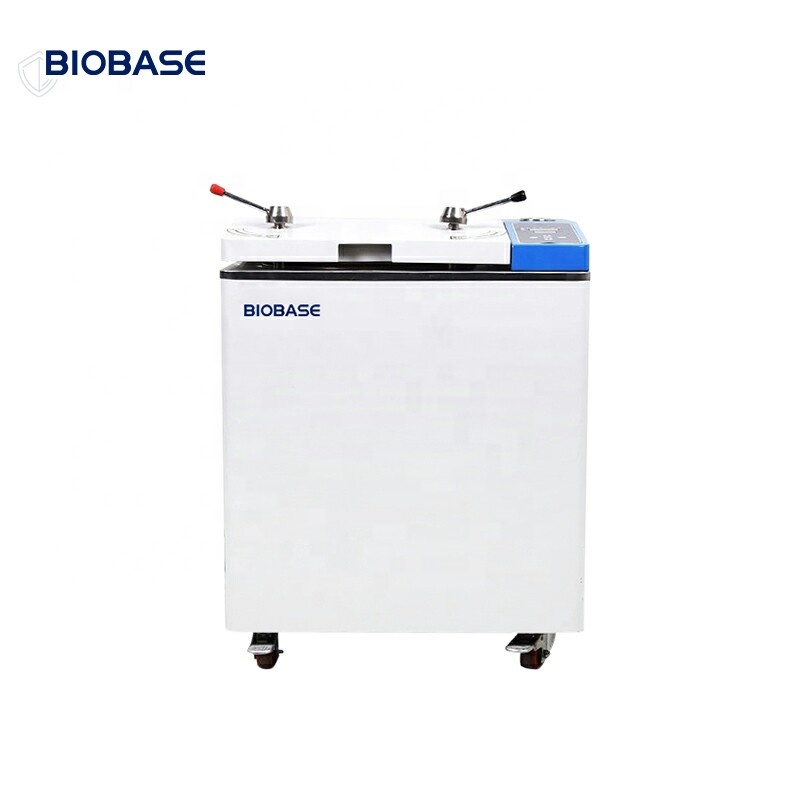

- Autoclave Vertical Steriliser Top Loading
| Model | BKQ-Z30I | BKQ-Z50I | BKQ-Z75I | BKQ-Z100I |
| Capacity | 30L | 50L | 75L | 100L |
| Chamber size(Φ*L) | 385*412 mm | 385*515 mm | 385*715 mm | 385*915 mm |
| Chamber material | Polished SUS304 medical stainless steel | |||
| Max pressure | 0.3MPa | |||
| Rated working pressure | 0.22MPa | |||
| Max temperature | 150℃ | |||
| Working temp range | 105~134℃ | |||
| Temp. accuracy | ±0.1℃ | |||
| Timing range | 0-999min | |||
| Dynamic pulse exhaust time | 0~9times | |||
| Water requirement | Distilled water or demineralized water | |||
| Standard Accessories | Stainless steel basket*1pc | Stainless steel basket*2pcs | ||
| Power consumption | 2.8KW | 3KW | 3.5KW | 4.5KW |
| Power supply | 220V, 50/60Hz | |||
| Chambersize(φ*H) | 385*412mm | 385*515mm | 385*715mm | 385*915mm |
| Outer size(W*D*H) | 610*645*710mm | 610*645*850mm | 610*645*1000mm | 610*645*1200mm |
| Net weight | 68kg | 75 kg | 85 kg | 100 kg |
- AAutoclave Flip Open Top Loading 3
