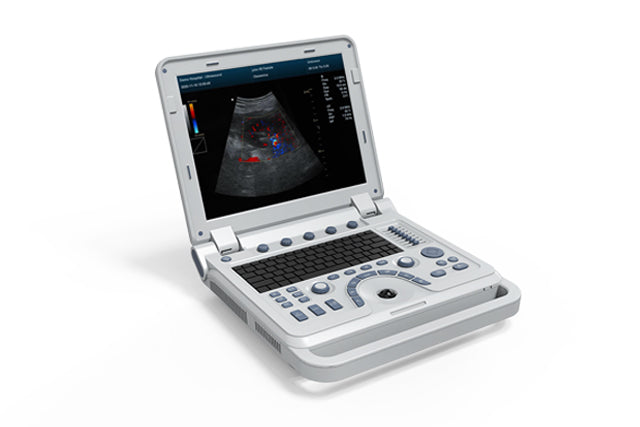

CMS600P2Plus B Ultrasound ��� Portable with Abdomen Convex Probe

CMS600P2 is a full digital B-Ultrasound diagnostic system. It adopts embedded operating system, which greatly optimizes the product performance. The system is taken more conveniently for its high effective data processing ability, pop-up menu and keyboard design. It includes rich measuring software packages that satisfy the clinic diagnostic need fully.

Main Performance:

��� Display mode:B,2B,4B,B/M,M
��� Image gray scale:256
��� Monitor:10.1 inch TFT LCD
��� Display resolution :1024*600
��� Lateral resolution:2 mm (near field) 4 mm (far field)
��� Axial resolution:2 mm (near field) 2 mm (far field)
��� Dead zone:���3 mm
��� Display depth:���240 mm
��� Horizontal geometric position precision:���5%
��� Vertical l geometric position precision:���5%
��� Zoom:0.9, 1.0, 1.1, 1.2, 1.3, 1.5, 2.0
��� Cine loop:600 frames
��� Image storage:2048 frames
��� Body mark:43
��� Focus: The number and position can be adjustable.
��� Assistant tool: Puncture guide and histogram
��� Obstetrics, gynecology, cardiology, small parts, urology etc. can generate reports automatically.
��� Measurement: Distance, circumference, area, volume, angle, ratio, slope etc.
��� Support Chinese, English language interface display and input.
��� The management interface menu, Chinese and English operating systems, image processing default and a key function of optimization.
��� Measurement formula can be set up differently according to the different race.
��� Comment: Date, time, name, hospital, number, frame rate, depth, gain, dynamic range, frame correlation, frequency etc.
��� Image processing: Controllable frame correlation, gamma correction, histogram
��� Image conversion: Up and down, left and right, black and white
��� Tissue harmonic imaging
��� Screen comments function in both Chinese and English
��� Support USB storage
��� Update software though USB
��� Interface: USB, Video, VGA

Standard Configuration:

��� 3.5MHz convex probe, 2.0MHz~5.0MHz Applications: Abdominal organs examination
��� 7.5MHz linear probe, 5.0MHz~10.0MHz
��� Applications: Small part examination

Physical Identity:

��� Dimension:370mm(L) x 360mm (W) x 80mm (H)
��� Weight: 6.5kg (include probe)
