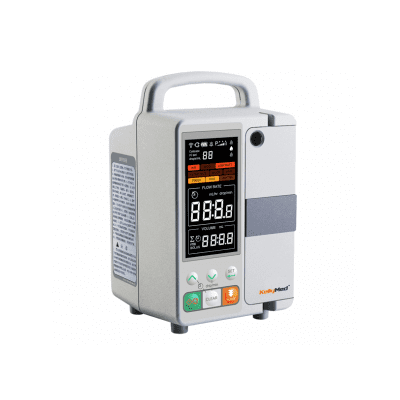

Infusion Pump-KL-8052N Model KL-8052N

Infusion Pump-KL-8052N

Features of an infusion Pump-KL-8052N

Specifications

• Model: KL-8052N
• Pumping Mechanism: Curvilinear peristaltic
• IV Set: Compatible with IV sets of any standard
• Flow Rate: 0.1-1500 ml/h (in 0.1 ml/h increments)
• Purge, Bolus: 100-1500 ml/h (in 1 ml/h increments) Purge when pump stops, bolus when pump starts
• Bolus volume: 1-20 ml (in 1 ml increments)
• Accuracy: ��3%
• VTBI: 1-9999 ml
• Infusion Mode: ml/h, drop/min, time-based
• KVO Rate: 0.1-5 ml/h (in 0.1 ml/h increments)
• Alarms: Occlusion, air-in-line, door open, end program, low battery, end battery, AC power off, motor malfunction, system malfunction, reminder alarm
• Additional Features: Real-time infused volume / bolus rate / bolus volume / KVO rate, automatic power switching, mute button, purge, bolus, system memory, key locker, change flow rate without stopping the pump
• Occlusion Sensitivity: High, medium, low
• Air-in-line Detection: Ultrasonic detector
• Power Supply, AC: 230 V, 50 Hz, 20 VA
• Battery: 9.6��1.6 V, rechargeable
• Battery Life: 5 hours at 30 ml/h
• Working Temperature: 10-40���
• Relative Humidity: 30-75%
• Atmospheric Pressure: 700-1060 hpa
• Size: 174*126*215 mm
• Weight: 2.5 kg
• Safety Classification: Class ���, type CF
