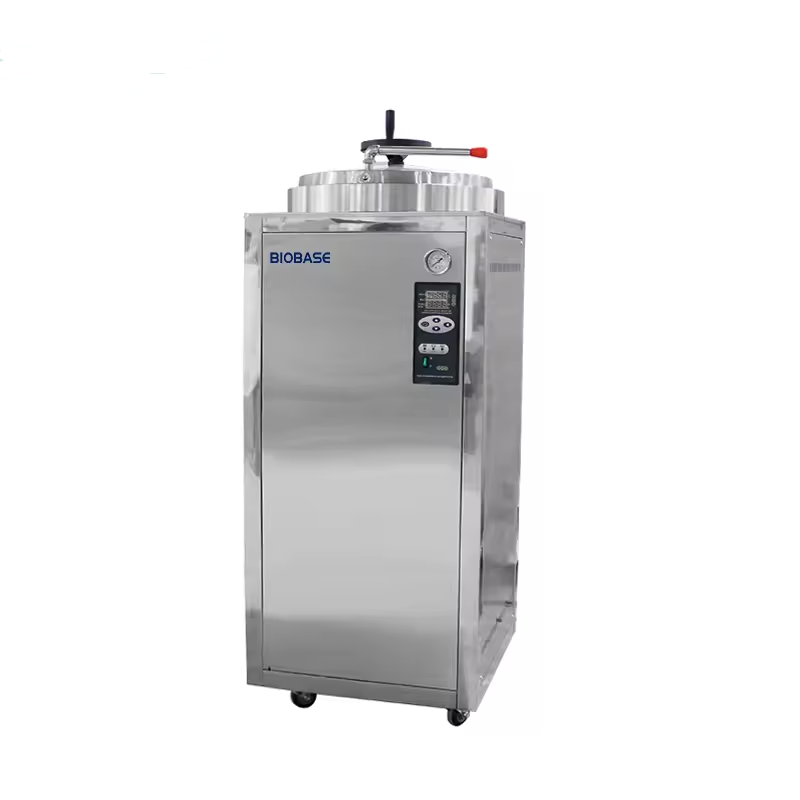

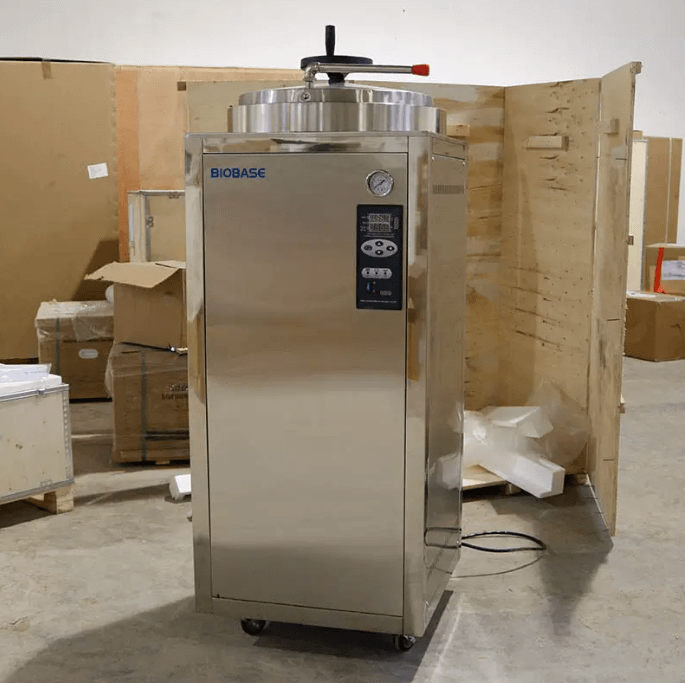

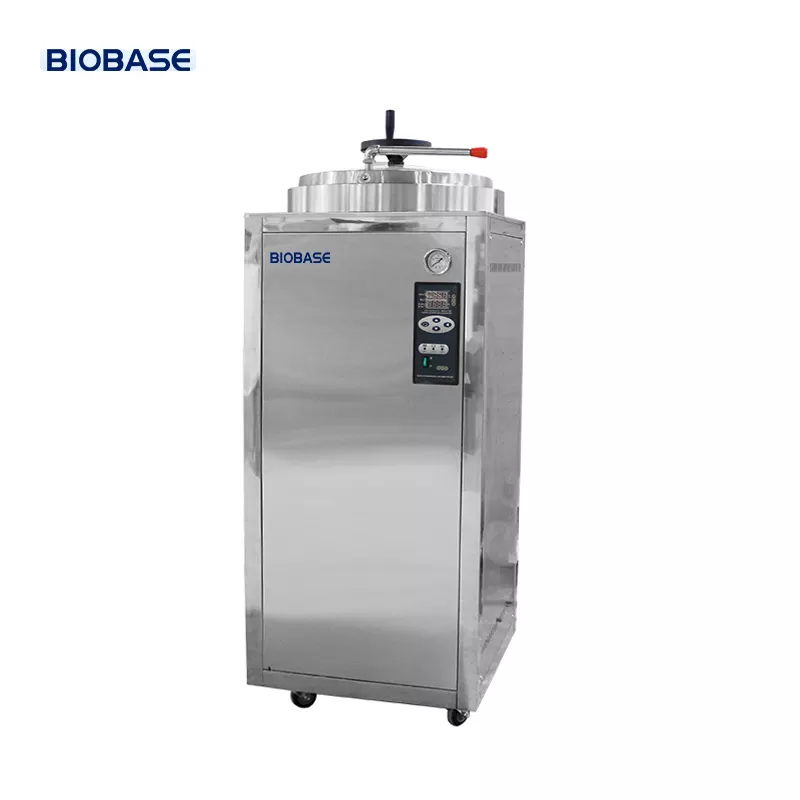

Vertical Autoclave Top Loading

R56,485.00

Vertical Autoclave Top Loading

Lead Time: 4-6 Weeks

Well Known High Quality ��� High performance autoclaves

Safety Features:
1. Over pressure. Safety valve can automatically open to release pressure.
2. Over temperature. The system will power off automatically.
3. Door sensor. Sensor at door closing position, to check the door status. If door is open, operation will stop.
4. Anti-dry out function. If water level is too low, system will power off and error code displays on screen.
5. Over current. over voltage or electric leakage protection apparatus-air switch.
6. Door cover.The door is covered with safety shell made of thermal insulation material, which can protect operator from burning
by heat and looks nice. Vertical Autoclave Top Loading
Technical Features:
* Water inlet filter to keep high water quality(except BKQ-B150/200II).
* Optional printer for recording sterilization data.
* LED screen displays all steps of full process as well as error codes.
* Independent quick service window, easy for repairing and maintenance.
* Automatic selecting quick or low exhaust to avoid sterilization liquid overflowing.
* Sterilization programs for dressings, equipment, rubber, culture medium, waste, etc.
* Hand wheel type of quick-open door structure, self-expandable sealing ring, easy operating and safe.
* Complete process of filling water, dynamic pulse exhaust, heating, sterilizing, draining and drying runs automatically. Specification Vertical Autoclave Top Loading

Model BKQ-B50II BKQ-B75II BKQ-B100II BKQ-B12BII BKQ-B150II BKQ-B200II
Capacity 50L 75L 100L 120L 150L 200L
Chamber Size(mm) ��386*514 ��386*694 ��386*874 ��386*1054 ��500*760 ��500*1000
Chamber Material SUS304
Designed Pressure 0.28Mpa 0.24Mpa
Designed Temp 150��� 138���
Working Pressure 0.22MPa 0.217MPa
Working temp. 105~136��� 50~134���
Temp. Displayaccuracy ��0.1���
Timing range 0~999min 0~99h
Dynamic Pulse
Exhaust Times
0~9 times
Dynamic Pulse
Exhaust Temp.
105~134���
Dissolution Temp.
Range
60~100���(programmable)
Temp. Holding Range 40~60���(programmable)
Consumption 4.4KW 4.7KW 5.2KW 5.2KW 6KW
Power Supply AC110/220V��10%, 50/60Hz 380V, 50Hz/200V, 50/60Hz
SS Basket 1 pc 2pcs 2pcs 3pcs 3 pcs 4pcs
External Size(W*D*H)mm 640*550*970 640*550*1070 640*550*1270 640*550*1370 650*650*1400 650*650*1700
Packing Size(W*D*H)mm 750*745*1100 750*745*1240 750*745*1450 750*745*1540 800*760*1500 800*760*1690
Gross Weight(kg) 102 112 125 140 190
