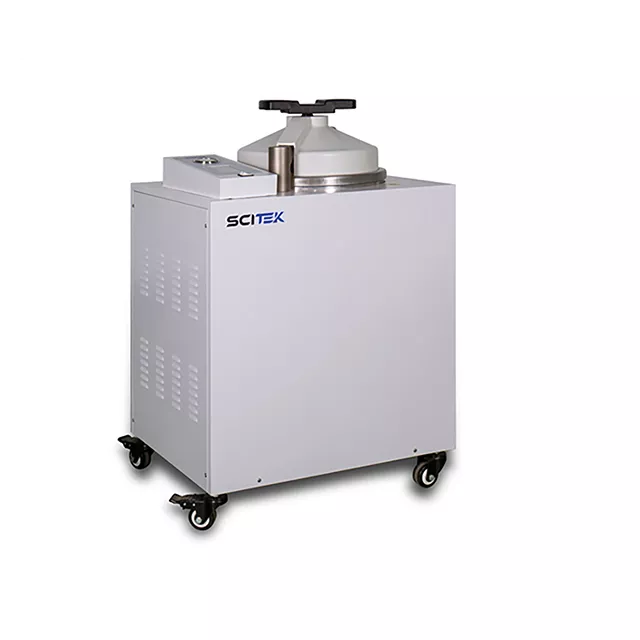

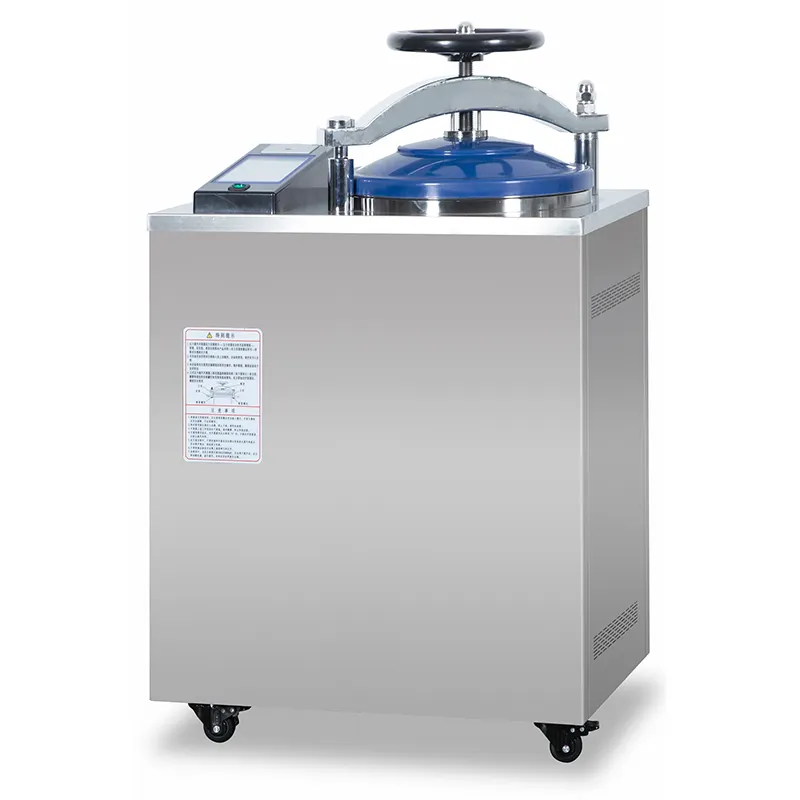

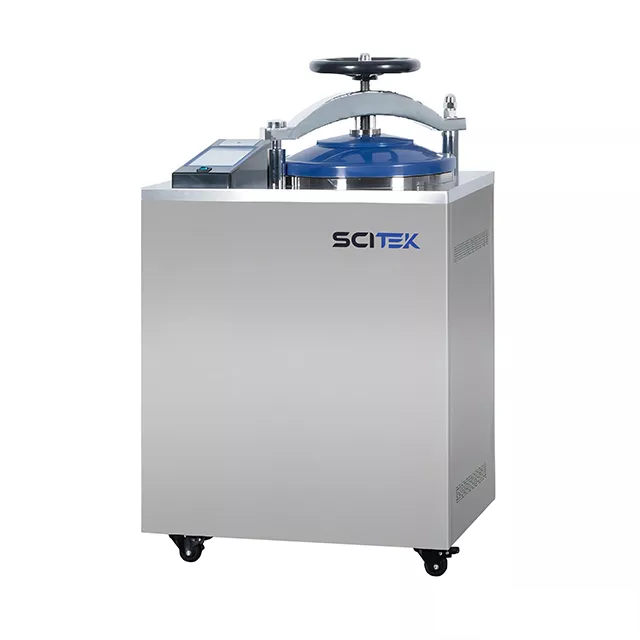

Vertical Pulse Vacuum Steam Autoclave

R68,765.00

Vertical Pulse Vacuum Steam Autoclave

    These Vertical Autoclave are well known for their durability, high Performance and as a trusted brand

  • Vertical Pulse Vacuum Steam Autoclave is suitable for use in sterilisation applications where higher requirements for sterilisation results are required.

Vertical Pulse Vacuum Steam Autoclave Features:

  1. The handwheel panning and quick-open structure allow you to operate the machine quickly,
  2. and the microcomputer automatic control allows you to set any parameters.
  3. The operation is very flexible.
  4. Three times pre-evacuation
  5. Equipped with stainless steel drum or basket, high-quality stainless steel matrial, good corrosion resistance
  6. LED touchscreen display and standard test interface, easy and fast to set and view the sterilization parameters.
  7. Self-expanding seal
  8. With a drying function and external steam generator, cold air is automatically vented and steam is automatically discharged after sterilization.
  9. Safety interlocks for safe operation with automatic protection functions:Over-temperature protection.Over-pressure self-discharge protection.Low water level protection.Automatic water to prevent dry burning.Buzzer reminder after sterilization and automatic shutdown.

Vertical Pulse Vacuum Steam Autoclave Specifications:

Model ST-V35PVM ST-V50PVM ST-V75PVM ST-V100PVM
Volume 35L 50L 75L 100L
Power 3.5kW 3.5kW 4.5kW 4.5kW
Voltage AC 220V, 50HZ
Design Pressure 0.25Mpa
Design Temperature 139���
Rated Working Pressure 0.22Mpa
Rated Working Temperature 134���
Sterilization Temperature 116���~134���
Sterilization Time Setting Range 4~120 min
Temp Accuracy ��1���
Drying Time Setting Range 0~240min
Chamber Size (mm) ��350��400 ��400��505 ��400��655 ��450��650
Bucket Size ��330��320 ��380��430 ��380��560 ��420��540
Basket Size (optional) ��320��350 ��360��280��1 ��360��280��2 ��410��300��2
Sizes(W��D��H)(mm) 698��498��940 630��500��1180 725��525��1180 760��560��1260
Shipping Size

(W��D��H)(mm)

790x610x1130 800x600x1230 840x610x1310 870x650x1380
N.W./G.W. (kg) 115/130 118/138 124/150 132/160
  • Vertical Pulse Vacuum Steam Autoclave

Vertical Pulse Vacuum Autoclave
