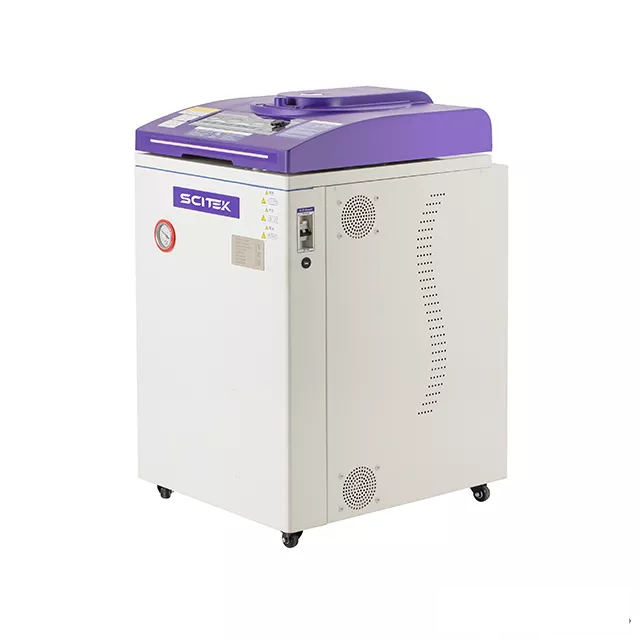

Vertical Pressure Steam Autoclave

Vertical Pressure Steam Autoclave

Vertical Pressure Steam Autoclave, With Drying Function

Lead Time: 4-6 Weeks

Advantages of Vertical Autoclave:

1. Automatically detect the position of the door lock and provide voice-guided instructions for easy operation.
2. Blue breathing light indicates standby, alert, and power outage statuses.
3. Safety valve calibration prompts, with the ability to send notification messages to a WeChat public account through cloud-based pushing.

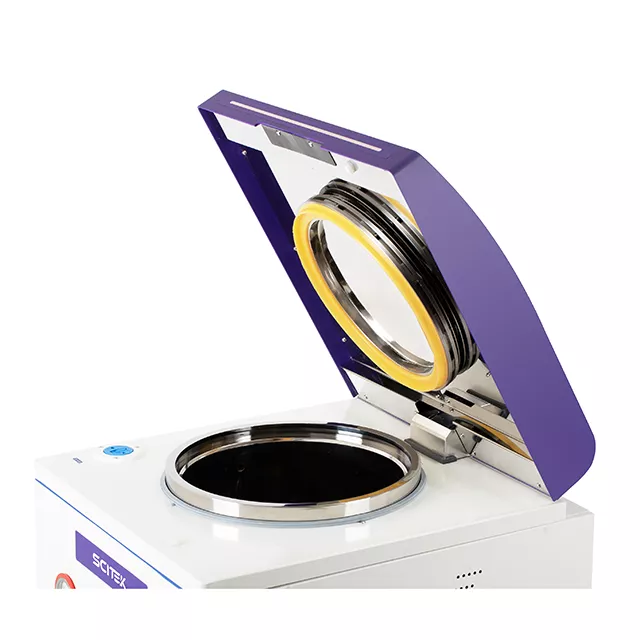

4. Dual-hold electromagnetic locks ensure automatic locking under high temperature or pressure.
5. Unlock conditions are met for automatic release, and the lid can be opened directly by lifting the lever.
6. No steam leakage: Internal integration of copper pipe steam condenser converts high-temperature steam into water before discharging it into the waste steam collection tank.
7. Voice prompts and guidance for user-friendly operation.
8. Optional sterilisation report USB export and online storage of sterilisation reports.
9. PHM/PHY models are equipped with online sterilization quality control functions such as ���FO value calculation, FO value process calculation, FO value aging treatment.���
10. Full automatic water replenishment, built-in current detection module to monitor the operation status of the heater in real-time, preventing dry heating online.
11. Standard configuration: Dual over-temperature protection + dual over-pressure protection for the heating system, ensuring enhanced safety.
12. Expandable + optional: For positive waste sterilization, an optional PTFE filter can be added to prevent exhaust pollution and potential personnel poisoning.
13. Reservation and preheating: Time reservation for automatic sterilization. Preheating capability prevents condensation due to temperature drop after drying.
14. sterilization is effective. Sterilization completion can be determined based on FO value rather than time.

Vertical Pressure Steam Autoclave

Drying Function:

Vertical Pressure Steam Autoclave

1. Disinfection packages with moisture content greater than 3% are referred to as wet packs.
2. Wet packs cannot be used and must be re-sterilized. T
3. he reason is that the moisture in the air forms a wet channel for bacterial contamination, leading to internal infection.

Vertical Pressure Steam Autoclave

Vertical Pressure Steam Steriliser Specifications:

Vertical Pressure Steam Autoclave
